VSNR: Variational Stationary Noise Remover. Examples of applications (slides) (codes)

Cite this work :

Variational algorithms to remove stationary noise. Application to microscopy imaging.
J. Fehrenbach, P. Weiss and C. Lorenzo, IEEE Image Processing Vol. 21, Issue 10, pages 4420 - 4430, October (2012).

%You can find all the functions below in the zip-file.

%% BLONDE TEST

clear all;close all;

% Initializes the random number generator

rng(2);

% Loads and normalizes image

im=double(imread('Blonde.png'));

im=im/255;

% Adds noisy lines to the image

sigma=0.3;

imb=im;

[nx,ny,m]=size(im);

for i=1:nx

imb(i,:,1)=im(i,:,1)+sigma*randn;

imb(i,:,2)=im(i,:,2)+sigma*randn;

imb(i,:,3)=im(i,:,3)+sigma*randn;

end

% Display

figure(1);image(uint8(255*imb));title('Noisy image')

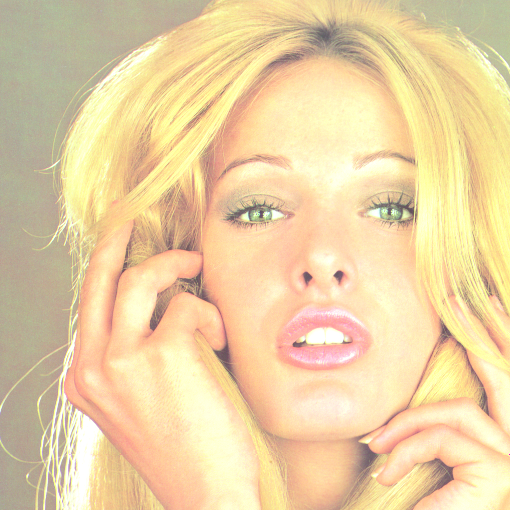

Original image

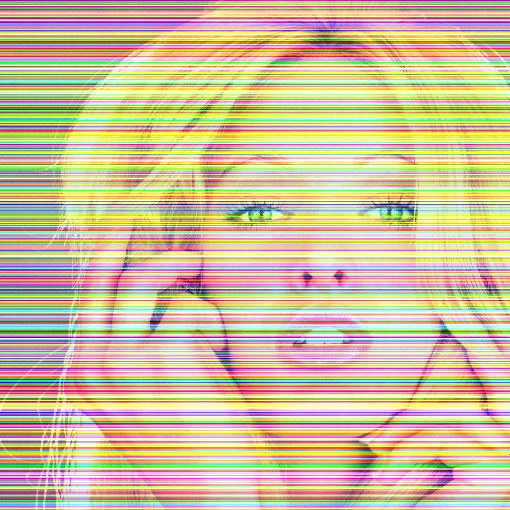

Noisy image

% Defines the filter (a line)

filter=zeros(size(im));

filter(1,:)=1/size(im,1);

% Denoising algorithm

x=zeros(size(im));

for i=1:3

ub=imb(:,:,i); % Treats every components separately

[y,Gap1,Primal1,Dual1,EstP1,EstD1]=VSNR(ub,0,2,filter,4e-4,1000,1e-3,1000);

x(:,:,i)=y;

end

% Display the result (sometimes she will have a sunburst)

figure(2);image(uint8(255*x));title('Denoised image');

Noisy image (PSNR = 16,5dB)
Denoised (PSNR = 32,3dB)

%% BABOON TEST

% Load and normalize image.

clear all;close all;

im=double(imread('mandril_gray.tif'))/255;

% Seeds the random number generator (to produce identical experiments each time)

rng(3);

% Generates noise patterns.

% First, an isotropic sinc convolved with Gaussian noise.

[ny,nx]=size(im); % generates a sinc

[X,Y]=meshgrid(linspace(-1,1,nx),linspace(-1,1,ny));

R=100*sqrt(X.^2+Y.^2);

psi1=sin(R)./(R+1e-10);

psi1=1e-2*psi1/max(psi1(:)); % Normalization

b1=randn(size(im)); %Gaussian process

bpsi1=ifft2(fft2(b1).*fft2(psi1)); %convolution of b1 and psi1

%Second, a Gabor function convolved with a Bernoulli process

psi2=gabor_fn(1,pi,0,0,1,0.05); % a Gabor function

psi2=ZeroAdd(psi2,im); %padds with zeros

psi2=1e-2*psi2/max(psi2(:)); %Normalization

b2=rand(size(im)); %generates a Bernoulli process

b2=double(b2>0.999);

bpsi2=ifft2(fft2(b2).*fft2(psi2)); %convolution of b2 with psi2

%Create noisy imagge

imb=im+bpsi1+50*bpsi2;

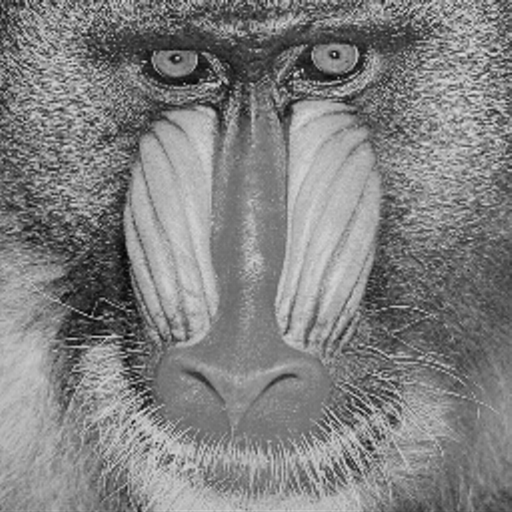

Original image

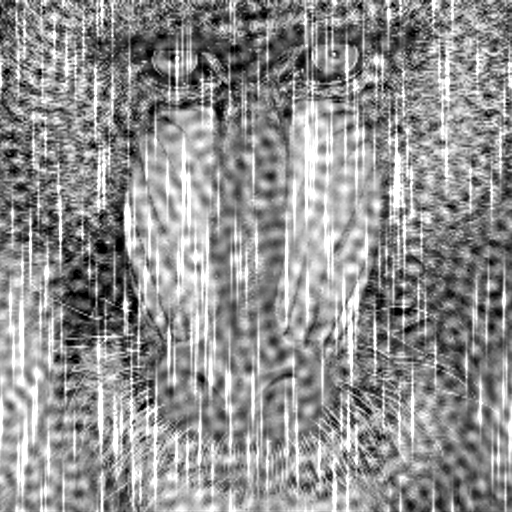

Noisy

%Stores the filters in a single array.

Gabors=zeros(ny,nx,2);

Gabors(:,:,1)=psi1;

Gabors(:,:,2)=psi2;

%% Denoising and display

%Denoises using a primal-dual algorithm.

%Sets parameters

p=[2,1]; %(indexes of p-norms)

alpha=[0.12,0.05]; %data terms.

epsilon = 0; %no regularization of TV-norm

prec= 5e-3; %stopping criterion (initial dual gap multiplied by prec)

maxit= 500; %maximum iterations number

C = 1; %ball-diameter to define a restricted duality gap.

%Main algorithm

%You can use the Matlab implementation:

tic;

[u,Gap,Primal,Dual,EstP,EstD]=VSNR(imb,epsilon,p,Gabors,alpha,maxit+1,prec,C);

toc;

%Or the C implementation:

tic;

[u,Gap,Primal,Dual,EstP,EstD]=VSNR_c(imb,epsilon,p,Gabors,alpha,maxit+1,prec,C);

toc;

Original image

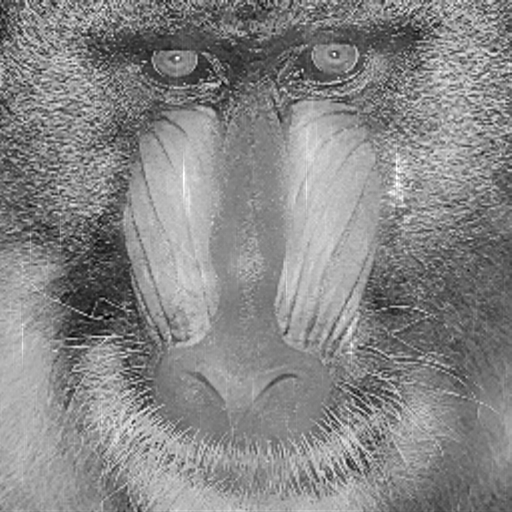

Restored image

%Retrieving noise components (EstP contains the estimation of noise processes)

cp1=-ifft2(fft2(EstP(:,:,1)).*fft2(psi1));

cp2=-ifft2(fft2(EstP(:,:,2)).*fft2(psi2));

First component
Retrieved first component

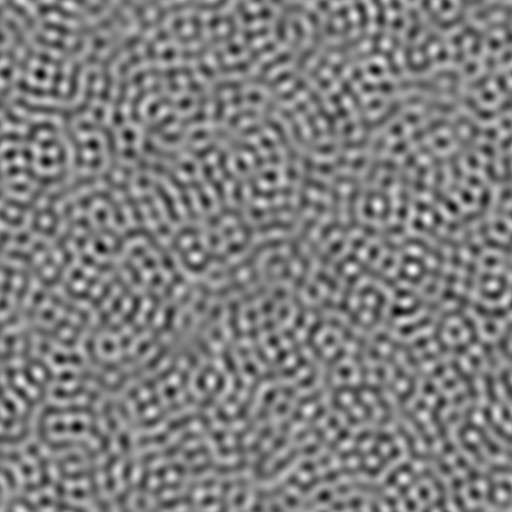

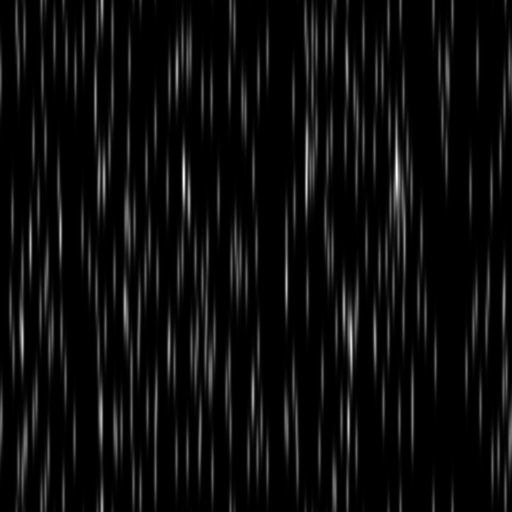

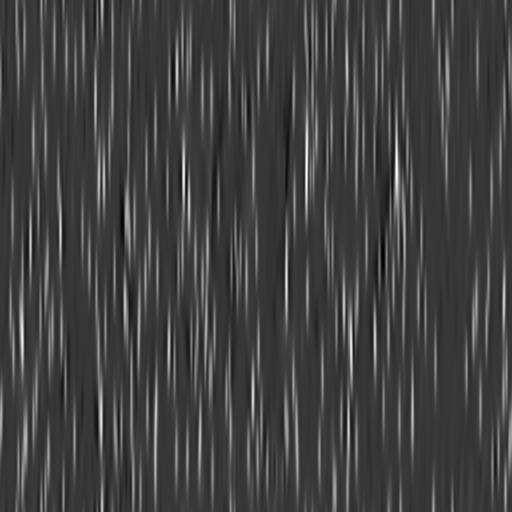

Second component

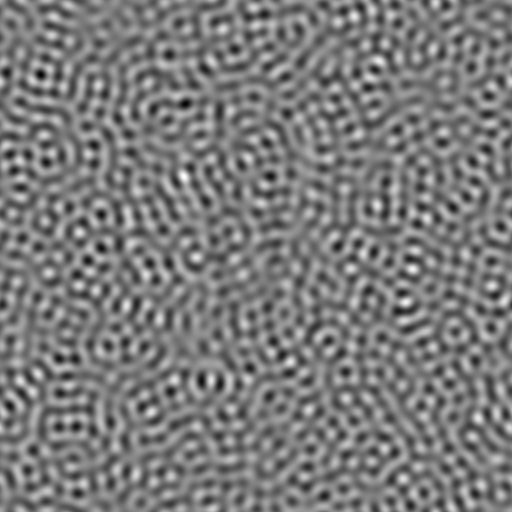

Retrieved 2nd component

%Displaying the whole

figure(1);colormap gray;imagesc(imb);title('Noisy image')

figure(2);colormap gray;imagesc(u);title('Restored image')

figure(3);colormap gray;imagesc(bpsi1);title('First noise component - real')

figure(4);colormap gray;imagesc(cp1);title('First noise component - estimated')

figure(5);colormap gray;imagesc(bpsi2);title('Second noise component - real')

figure(6);colormap gray;imagesc(cp2);title('Second noise component - estimated')
